< SELECTED PORTFOLIO



BEER DISTRIBUTION WAREHOUSE

Montclair, CA - 120,953 SF

Working with the cold storage contractor, Clarion Construction, Inc., Bosz Arch, Inc. provided the construction documents and engineering to create three new high-racked storage areas of refrigerated warehouse totaling 120,953 square feet for a beer distribution company, one of which is a box-in-a-box. The existing ambient temperature building was converted to a temperature-controlled distribution center. An infill development, a challenge arose to conceal thirteen large roof-top-mounted condensing units from view from four adjacent streets, one of which was an elevated overpass. The properly placed units satisfied the city's restrictive design parameters and did not impact the visual integrity of the building.

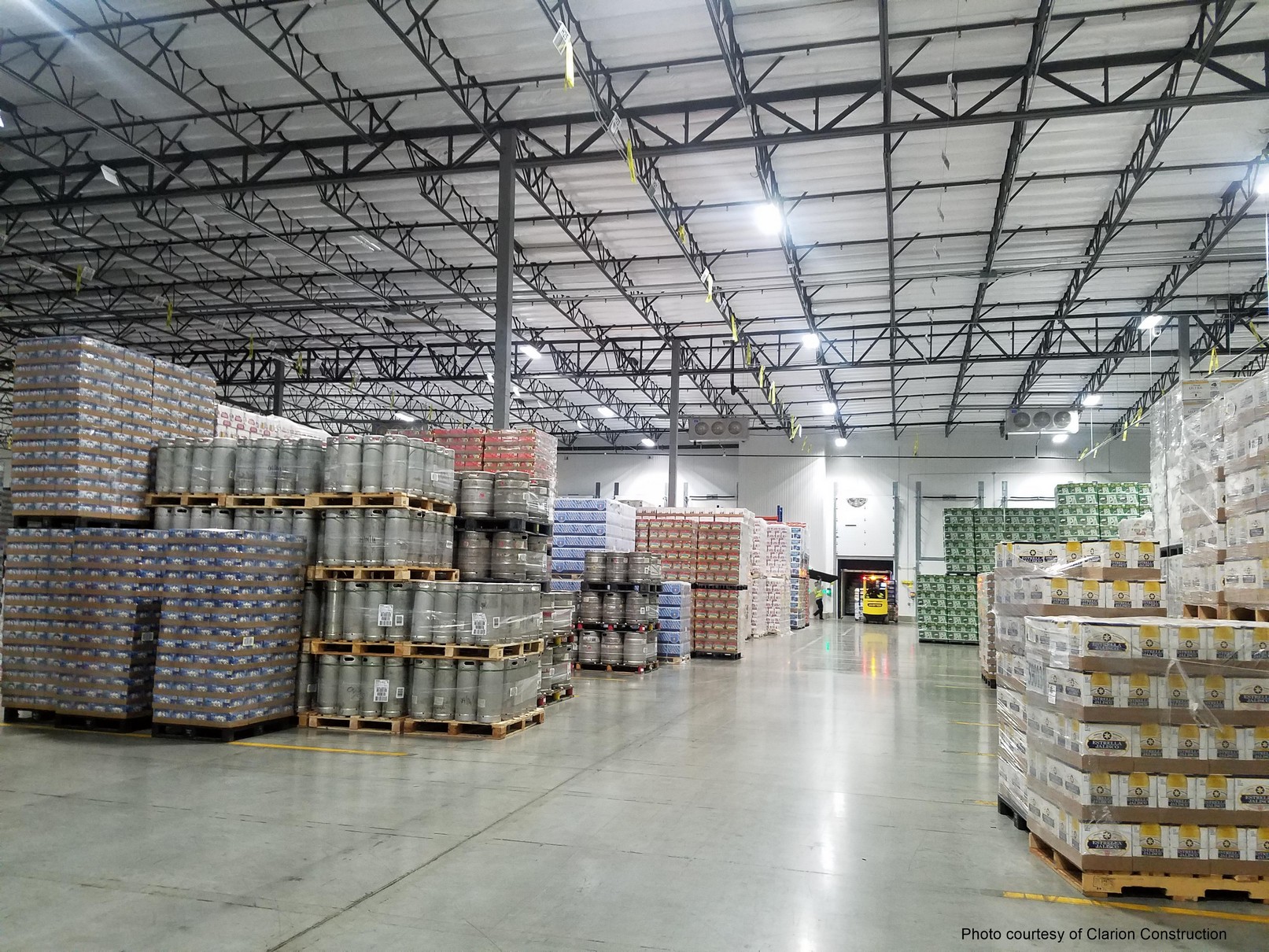

  • 107,700+ SF of +60°F beer cooler with 29' clear ceiling height and 30 evaporator coils
  • 9,800+ SF of +36°F draught cooler with 24' clear ceiling height and 4 evaporator coils
  • 2,900+ SF of +45°F craft cooler with 32' clear ceiling height and 2 evaporator coils

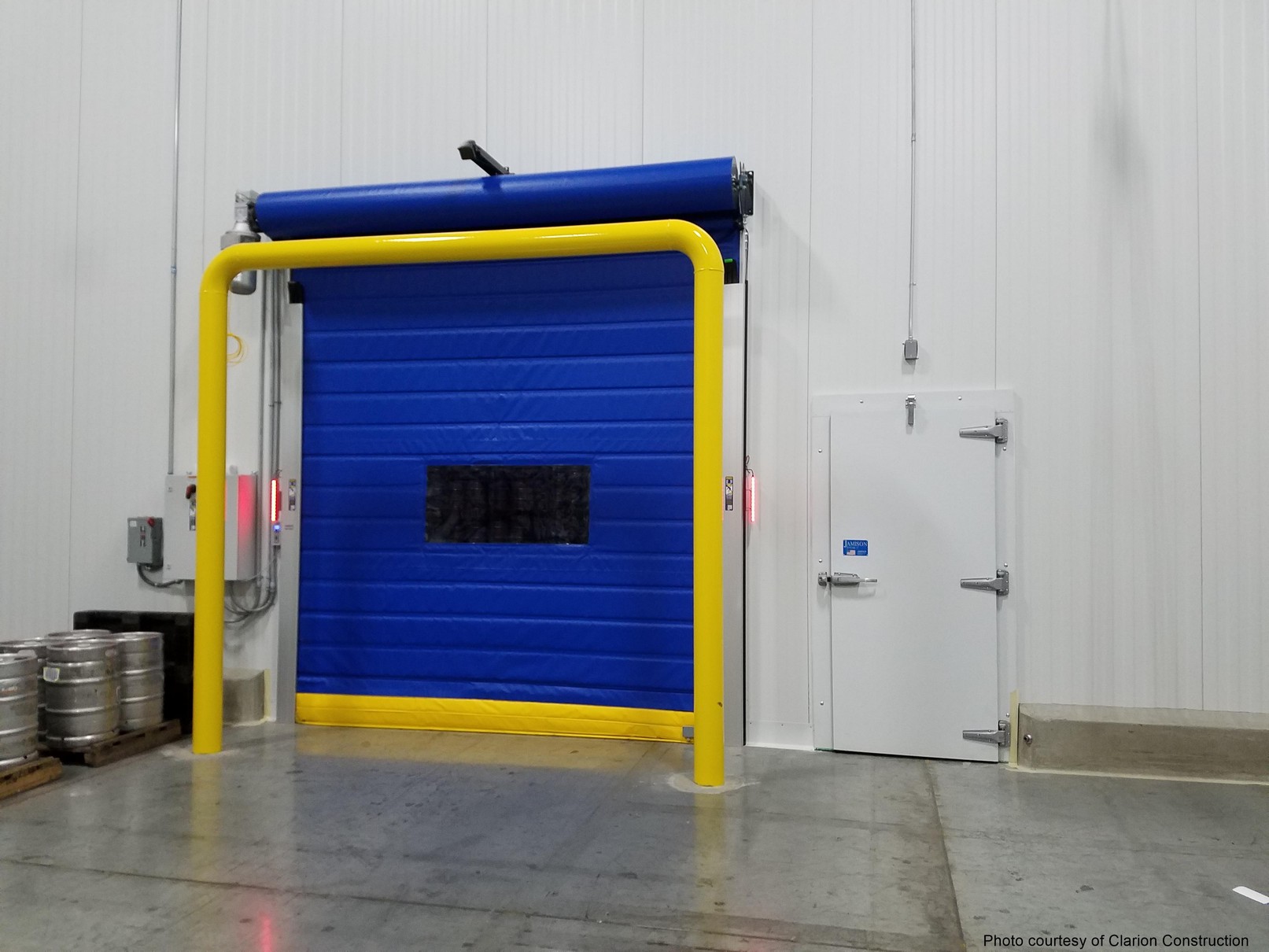

  • 18 vertical lift insulated dock doors and 3 Albany high-speed roll-up cooler doors
  • Metl-Span urethane core wall and ceiling panels with Polar White USDA finishes
