STATER BROS. MARKETS

San Bernardino, CA - 600,079 SF

When Stater Bros. Markets decided to build a new 62 acre distribution campus in San Bernardino, California, Bosz Arch, Inc. was proud to have worked for Clarion Construction, Inc. as the consulting cold storage architectural firm to develop construction documents for their cold storage/perishable building. Completed as part of a larger project with Oltman's Construction Company as the general contractor and HPA Architecture as the Architect of Record, this cold storage portion of the facility that Bosz Arch, Inc. provided documents for is over 600,000 square feet of refrigerated rooms consisting of 11 rooms ranging in temperatures from +55°F to -20°F.

  • 274,292 SF - 3 freezer with temperatures of -20°F, -10°F, +28°F
  • 201,008 SF - 5 coolers of +35°F space for various use

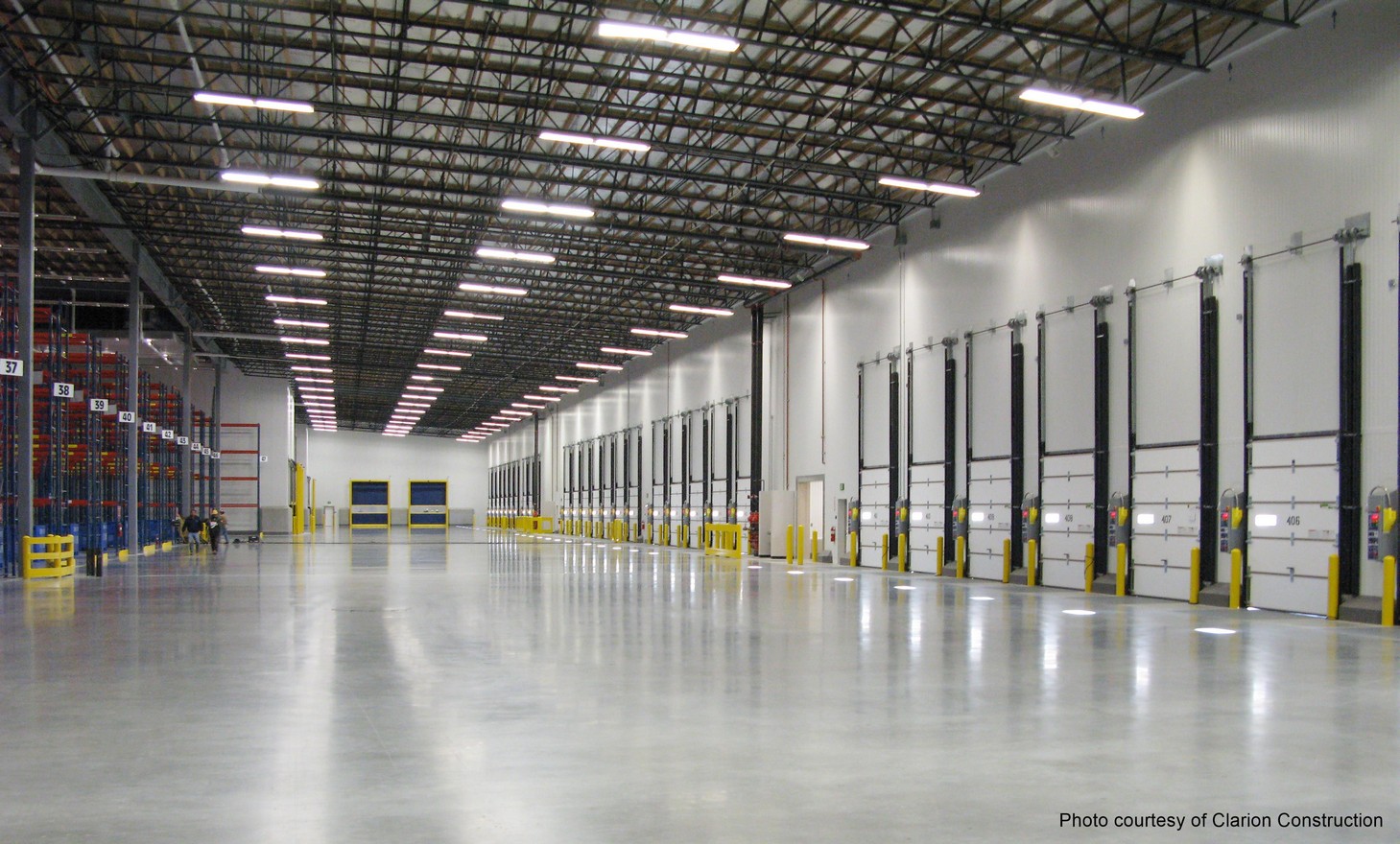

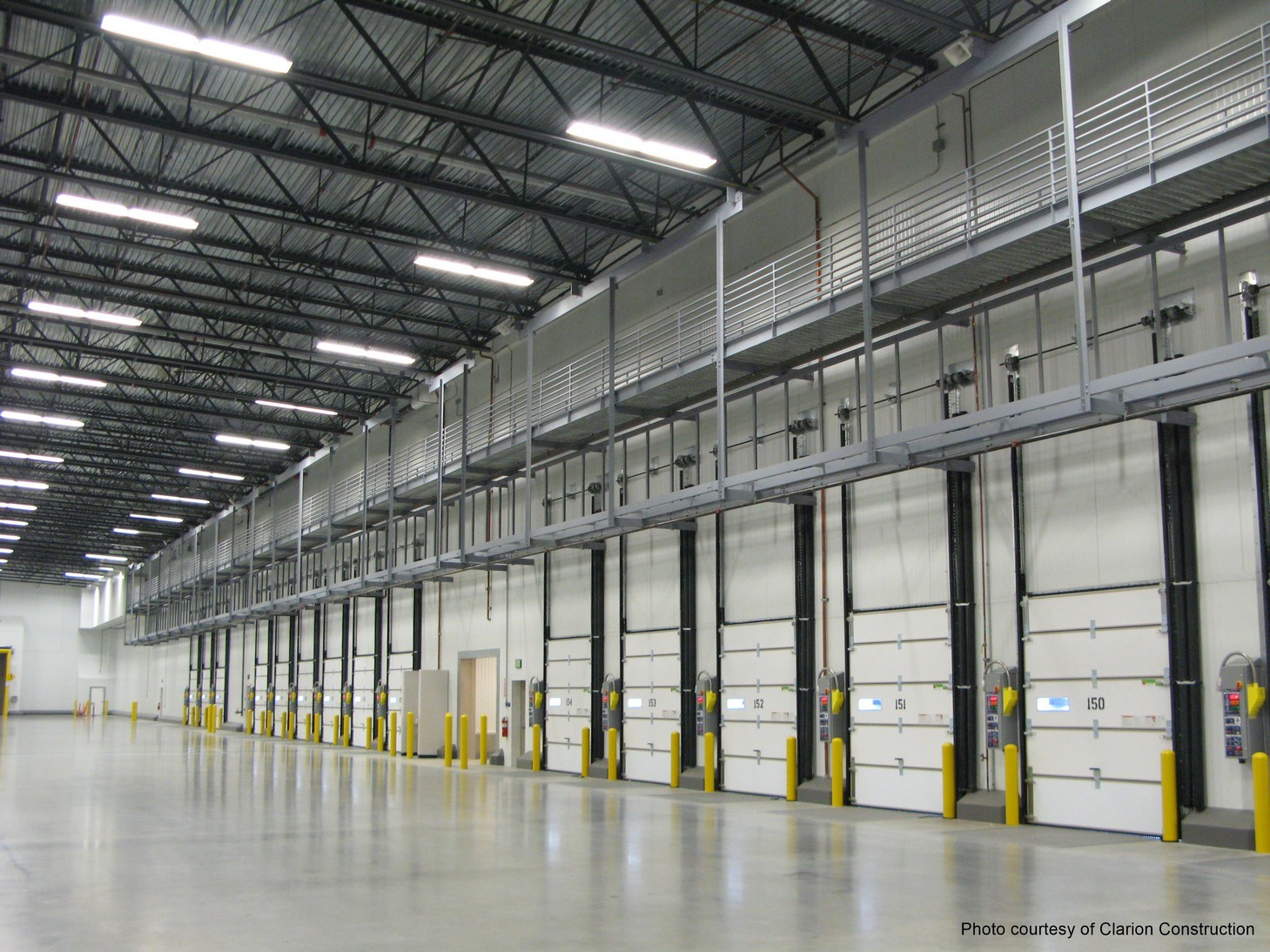

  • 124,779 SF of +35°F cold docks on each side of the building with 79 vertical lift truck doors

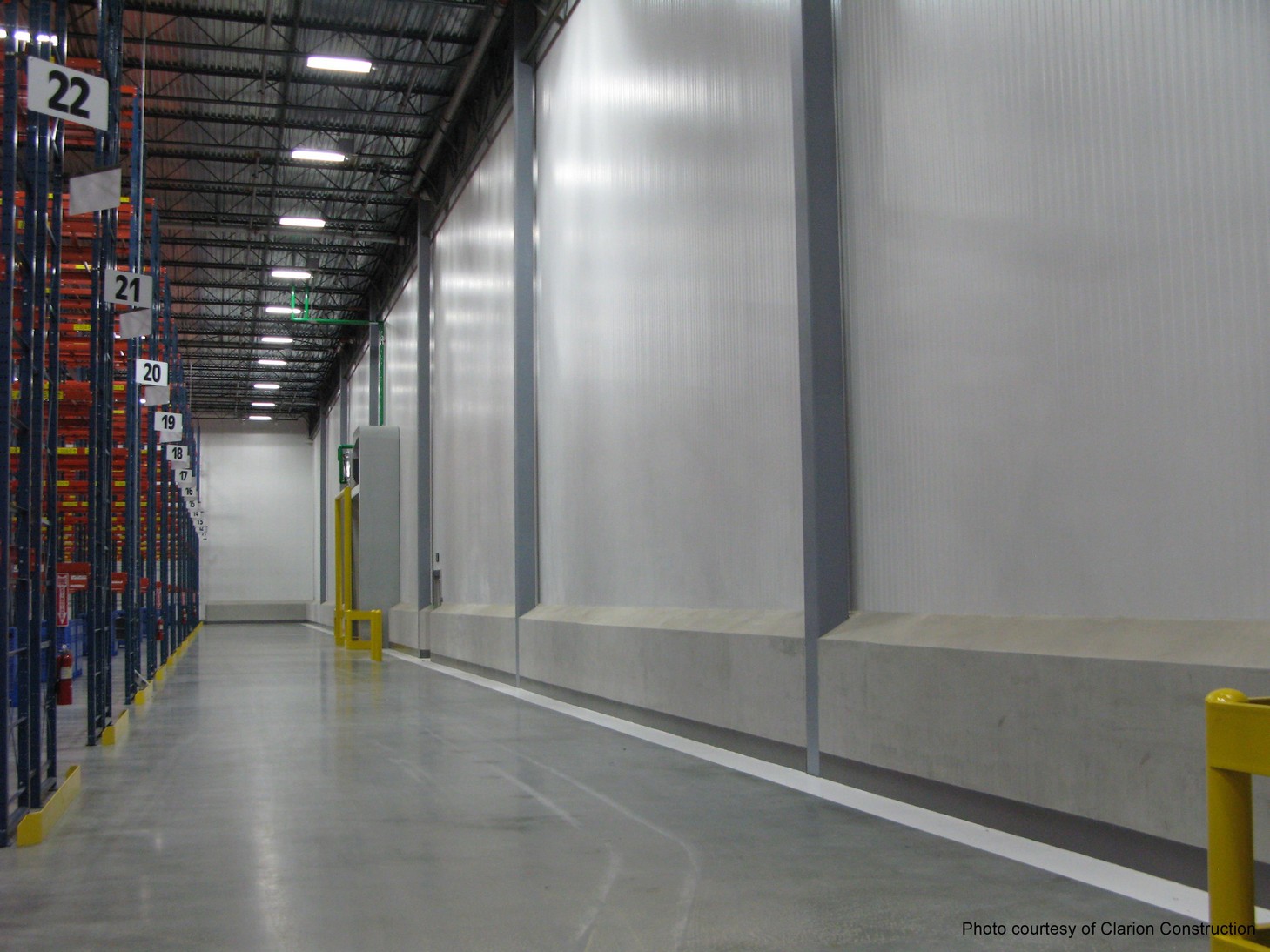

  • Metl-Span urethane core insulated panel walls in USDA Polar White finish
  • Dow Freezermate insulated freezer floors with underfloor glycol warming systems
  • Roofing comprised of TPO roofing over Dow Deckmate over isocyanurate board over steel deck
